Pickup only, no shipping on Bikes.

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areasÂ

Mechanical

Â

Frame  6061 Grade Alloy

Wheel Size  650B 36H Front and Rear

Fork  Zoom Suspension

Handlebar  ZOOM HB-T320

Stem  PROMAX MQ-565S

Seatpost  28.6mm Promax Seatpost

Seat Clamp  28.6mm Promax Seat Clamp

Saddle  Tebco Saddle Wide Based

Shifters  SHIMANO SL-M315

Derailleur  SHIMANO TOURNEY 7Spd

Rims  650B 36H Double Wall Alloy (Black)

Hubs  Modus Aluminum Hub

Spokes  12g 2.4mm F / 12g 2.6mm R Stainless Steel Black

Tyres  KENDA K924 650B x 2.125in

Cranks  PROMAX E44PP/32 170MM 48T

Pedals  YONGHUA 8X

Chain  KMC Z51/RB/140L

Brakes Front  TEKTRO Aries Mechanical Disc

Brakes Rear  TEKTRO Aries Mechanical Disc

Brake Levers  WUXING 108PPD/4

Mudguards  Black Plastic 650B x 65mm

Electrical

Â

Motor  EWO 36V 200W DGW07-32 650B Rear Wheel / EWO 36V 200W DGW07-32 27.5in Rear Wheel

Controller  15Ah LISHUI Brushless LSW1155-59M

Battery  36V 10.5Ah 40pcs 18650 2600MAh

Battery Life  Up to 800 recharges from flat

Battery Weight  2.4kg

Display Panel  KEY DISPLAY KD51C

Twist Grip Acc Assy  Wuxing 158X.T / HT406 Slimline

Pedal Activation  KUNTENG Left Crank Mount

Light Front  BUCHEL LED 51252712 Static Illumination

Light Rear  BUCHEL LED 51254523 Static Illumination

Charger  Sans 36V 2Amp Lithium AU Compliant

Main Cable  JULET 1T5 Waterproof Quick Release

Audible Warning  HONKA HOOTA Black

Max Speed  25kmh

Max Range  80km 1:1 Pedal Assist

Bicycle Weight  25kg incl battery

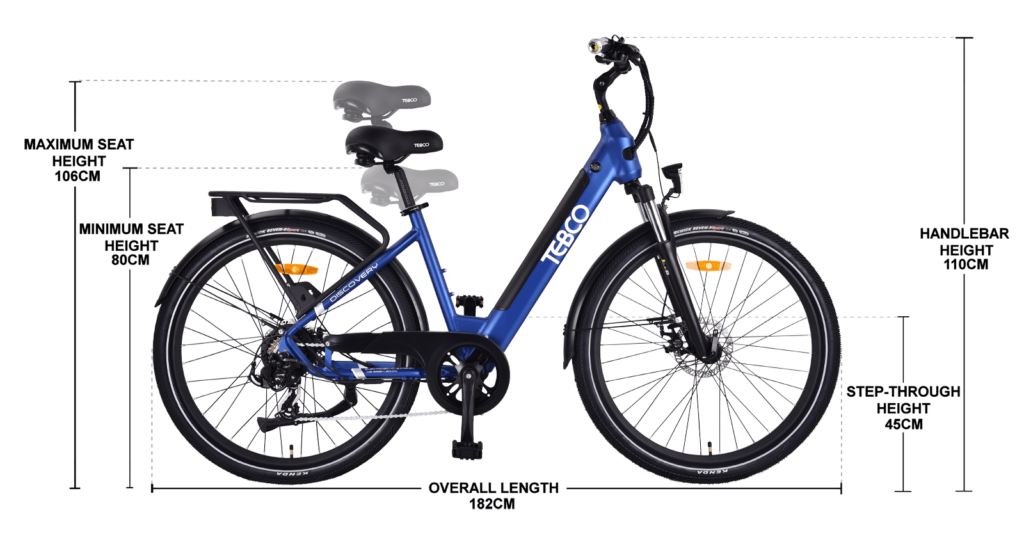

Sizing

Â

Length  1820mm

Width  660mm

Max Seat Height  1060mm

Min Seat Height  800mm

Step Over  450mm
