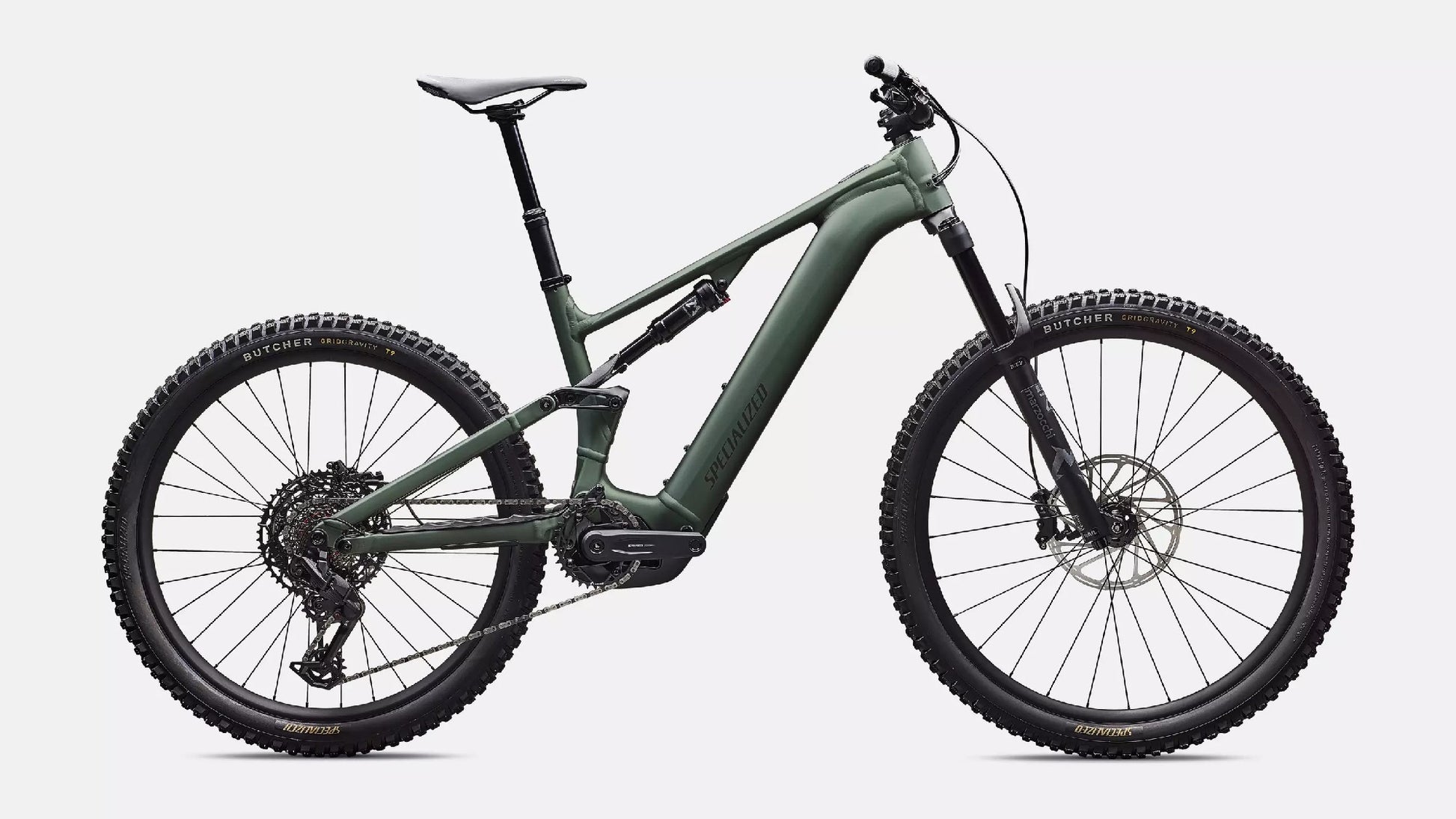

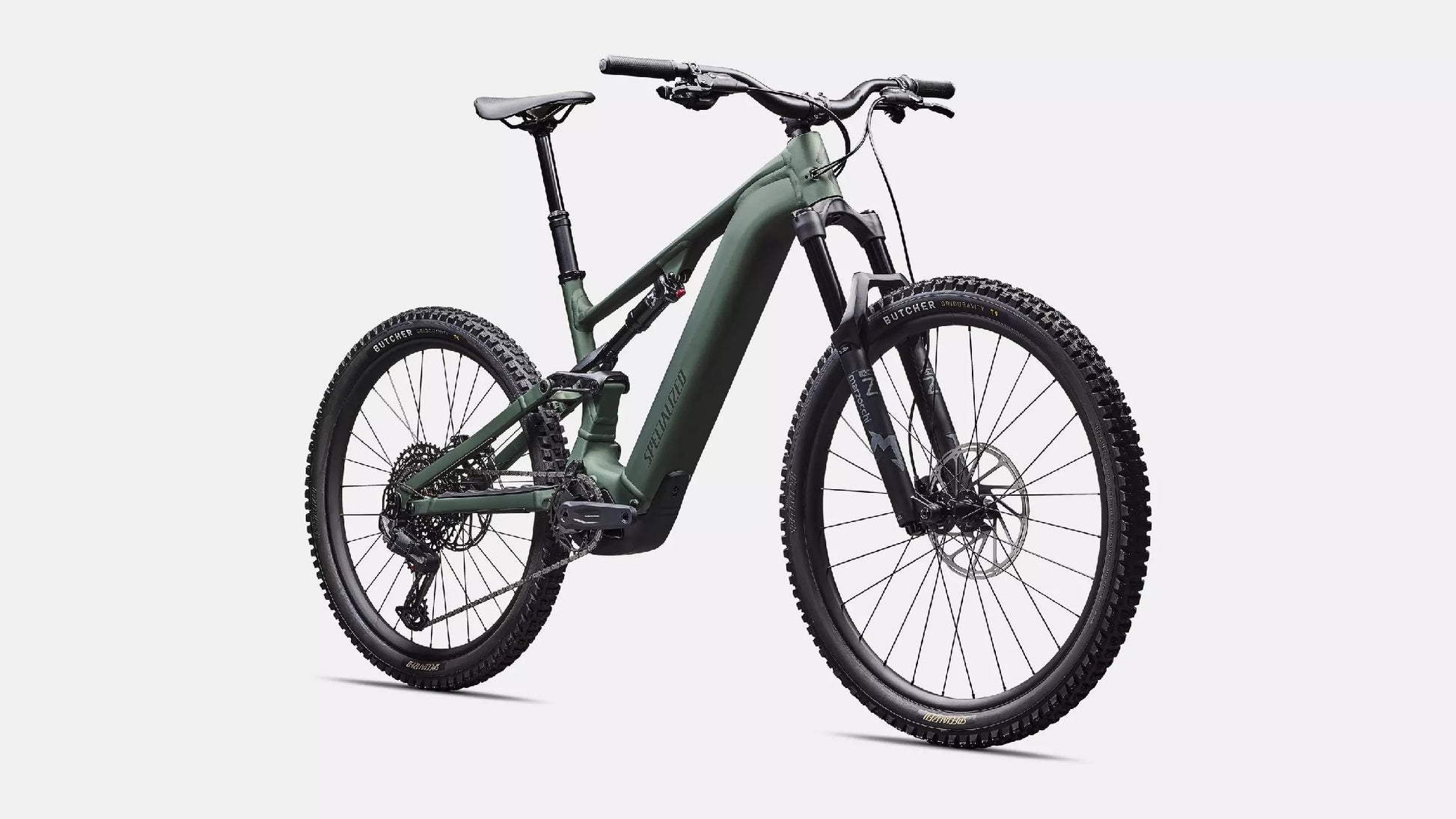

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

E-bike:

UI/Remote

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Motor

Specialized 3.1 Motor, 101Nm torque, 666Nm power

Charger

Specialized 4amp charger

Battery

840Wh battery

Frameset:

Seat Binder

Alloy, 38.6mm

Frame

All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm

Suspension:

Rear Shock

*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm

Fork

Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression

Brakes:

Front Brake

SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor

Rear Brake

SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor

Drivetrain:

Cassette

XS-1270, 12-speed, 10-52t

Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel

Chain

SRAM Eagle 70 T-Type Flattop Chain

Rear Derailleur

SRAM Eagle 70 T-Type

Shift Levers

SRAM 70 trigger, 12-speed, single click

Crankset

SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm

Wheels & tires:

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"

Spokes

DT Swiss Industry

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Rims

Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes

Standard, Presta valve

Cockpit:

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width

Saddle

Body Geometry Bridge Saddle, steel rails

Grips

Specialized Trail Grips

SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm

Accessories:

SWAT

SWAT internal downtube storage

Product details:

Product ID

221347

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight:

Weight

26.08 kg (57 lb, 7.8 oz)

Weight Size

S4
