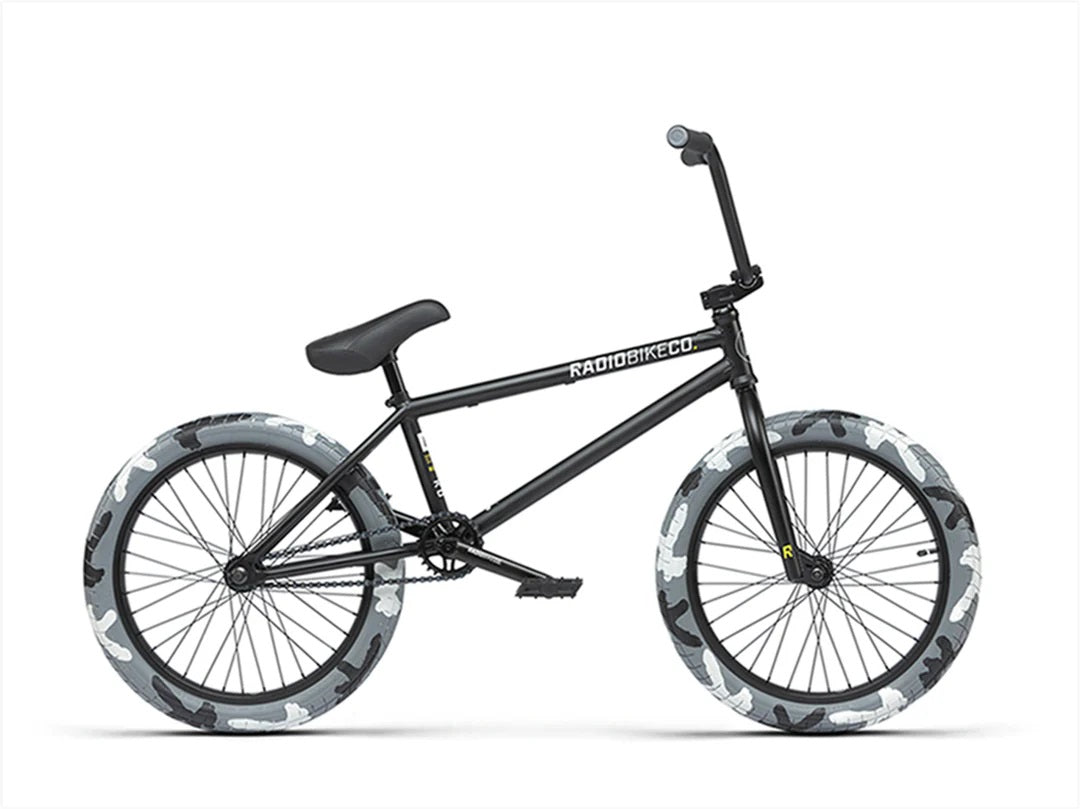

Radio Darko 20" BMX Bike - 21.0TT - Matte Black

DETAILS:

21” top tube, the Darko is a well spec’d, and vibrant bike for the new-school street shredder. The frame comes with fully removable brake hardware and the bars use the flangeless Radio XL grips giving the Darko a sleek and modern look. A fat combo seat, a shorter 13.2” chainstay.

Specifications
Frame - Radio 'Darko' frame, Cr-Mo top tube & down tube, 1020 hi-ten, removable brake mounts & guides
Fork - Radio 'AM' fork, 1020 hi-ten, Cr-Mo steerer, tapered legs
Handlebar - Radio 'Darko' bar, 1020 hi-ten
Grips - Radio 'AM XL' grips, 160mm
Stem - Salt 'Pro' top loading stem, 50mm reach
Headset - Salt 'Pro' int. headset, sealed bearing
Gyro - Holes for removable tabs
Brake lever - Radio 'AM' alloy brake lever
Brake - Radio 'AM' alloy u-brake rear
Crank - Radio 'AM' 3pc crank, tubular, Cr-Mo, 170mm, 8 spline
BB - Mid size, press fit, sealed bearing
Pedals - Radio 'Pro' nylon fibreglass pedals
Chain - Salt 'AM' chain, WZ1 type
Sprocket - Radio 'Vision' steel 25T sprocket
Driver - 9T cassette driver, sealed bearing
Front hub - Salt 'AM' hub, alloy, loose ball, 3/8″s male axle, 36H
Rear hub - Radio 'AM' cassette hub, alloy, semi-sealed, 9T, 14mm axle, 36H
Front rim - Salt 'Fraction' rim, single wall, 36H
Rear rim - Salt 'Fraction' rim, single wall, 36H
Seat - Radio 'Century' fat padded combo seat
Seat clamp - Integrated slim seat clamp
Tyres - Saltplus 'Burn' tyres, 2.35″ front & rear
Weight - 12.15kg

Frame geometry
Top tube length - 21″
Chain stay length - 13.2″
Head tube angle - 75°
Seat tube angle - 71°
Bottom bracket height - 11.7″
Standover height - 8.6″ / 8.9″

Handlebar geometry
Rise - 9″
Width - 29.5″
Backsweep - 12°
Upsweep - 2°

PN: RABK145-21-BLK
