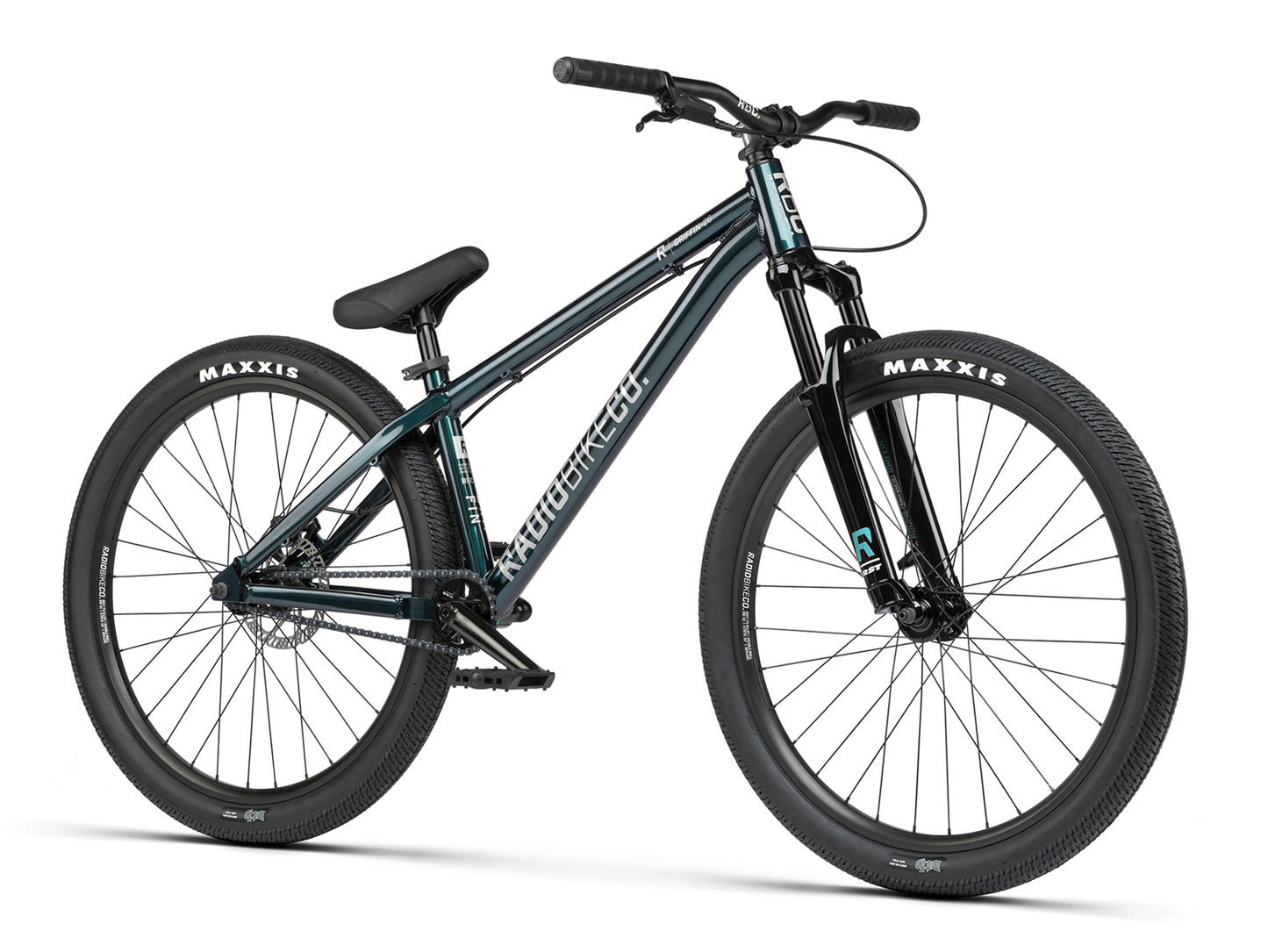

A truly exceptional bike, bettering itself year on year, the Griffin is built on to a competition spec 6061-T6 alloy frame and boasts components from Maxxis, RST, Tektro, Race Face and FSA. Now in a mesmerising cobalt green paint finish, Radio's mid-level dirt jump machine is a bike which you guys can’t get enough of.

Specifications
Frame - Radio 'Griffin' frame, 6061-T6 alloy, tapered head tube, forged yoke
Fork - RST 'Dirt RA' fork, 100mm travel
Handlebar - Radio 'Asura' bar, 6061-T6 alloy, 31.8mm
Grips - Radio 'Frequency XL' grips, flangeless, 160mm
Stem - Radio 'Zoom' frontload stem, alloy, 40mm reach
Headset - FSA No.42/ACB-A integrated a-headset, 1-1/8"-1.5"
Brake lever - Tektro 'RS-360A' front lever / Tektro 'HD-M275' rear lever
Brake - Tektro 'Aries' mechanical disc brake, 160mm rotor, front / Tektro 'HD-M275' hydraulic disc brake, 160mm rotor, rear
Crank - Saltplus 'Ultra' 3pc crank, TSS, Cr-Mo, 170mm, 8 spline
BB - Radio 'BSA19' BB set, sealed bearing (Euro)
Pedals - Radio 'Slim' nylon/fibreglass pedals
Chain - Salt 'AM' chain, WZ1 type
Sprocket - Salt 'Gateway' sprocket, alloy, 25T
Driver - 10T, 1pc cassette driver, sealed bearing
Front hub - Radio 'Pro-Dj' disc hub, alloy, sealed, 3/8"S male axle, 32H
Rear hub - Radio 'Pro-Dj' disc hub, sealed, 3/8"S Cr-Mo axle, 32H
Front rim - Radio 'DB32' rim, double wall
Rear rim - Radio 'DB32' rim, double wall
Seat radio - Radio 'Dj' combo seat, medium padded
Seat clamp - Radio quick release seat clamp, alloy
Tyres - Maxxis 'DTH' tyres, 2.3" front & rear
Weight - 13.01kg / 26.68lbs

Frame geometry
Top tube length - 22.6"
Chain stay length - 15"
Head tube angle - 69°
Seat tube angle - 72°
Bottom bracket height - 20mm drop
Standover height - 11"

Handlebar geometry
Rise - 50mm
Width - 760mm
Backsweep - 8°
Upsweep - 3°
