LIV

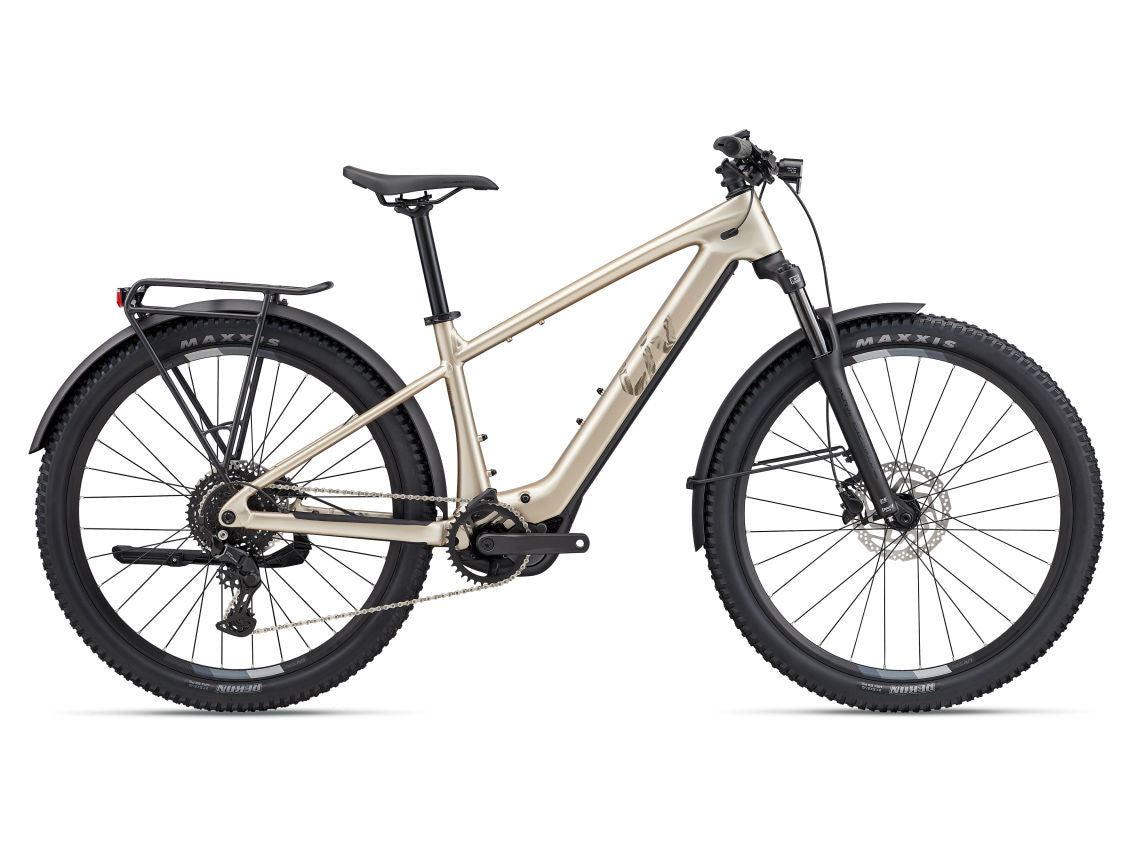

TEMPT E+ EX

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Â

SIZE - SMALL

COLOUR - SANDSHELL

Motor: SyncDrive Sport 2, 75Nm, Powered by Yamaha

Controller: RideControl Dash 2, full colour LCD screen

Display: RideControl Dash 2, full colour LCD screen

Battery: EnergyPak 430Wh, Giant EnergyPak Plus 200 range extender compatible

Charger: Giant EnergyPak smart charger 4A

Maximum assisted speed: Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed

Connectivity: Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile

 Frame: ALUXX-Grade aluminium, disc

Fork: SR Suntour XCM 32 DS Coil, Boost, 100mm travel

Handlebar: Giant Connect TR Riser, 31.8mm

Grips: Giant Sole-O Grip

Stem: Giant Contact, alloy, 8-degree 50mm

Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium

Saddle: Liv ErgoContact Trail

Pedals: Platform

Shifters: Shimano Cues

Rear Derailleur: Shimano Cues 9-speed

Brakes: Shimano MT200, hydraulic disc, 180mm [F/R]

Brake Levers: Shimano MT-200

Cassette: Shimano Cues, 11-41T, 9-speed

Chain: KMC eGlide, e-bike optimised

Crankset; Forged alloy, 36T, (XS/S) 160mm

Rims: Giant alloy 27.5"

Hubs: Giant eTracker Boost alloy 6-bolt disc, 28H

Spokes: Stainless steel

Tyres: Maxxis Rekon 27.5x2.4" or 29x2.4"

Extras: Aluminium fenders, KSA40 direct mount kickstand

Lighting: Giant Recon E HL50, Axa BlueLine Steady E6 rear

Carrier: Giant Rack-It MIK

PN: 6550001154
