GIANT

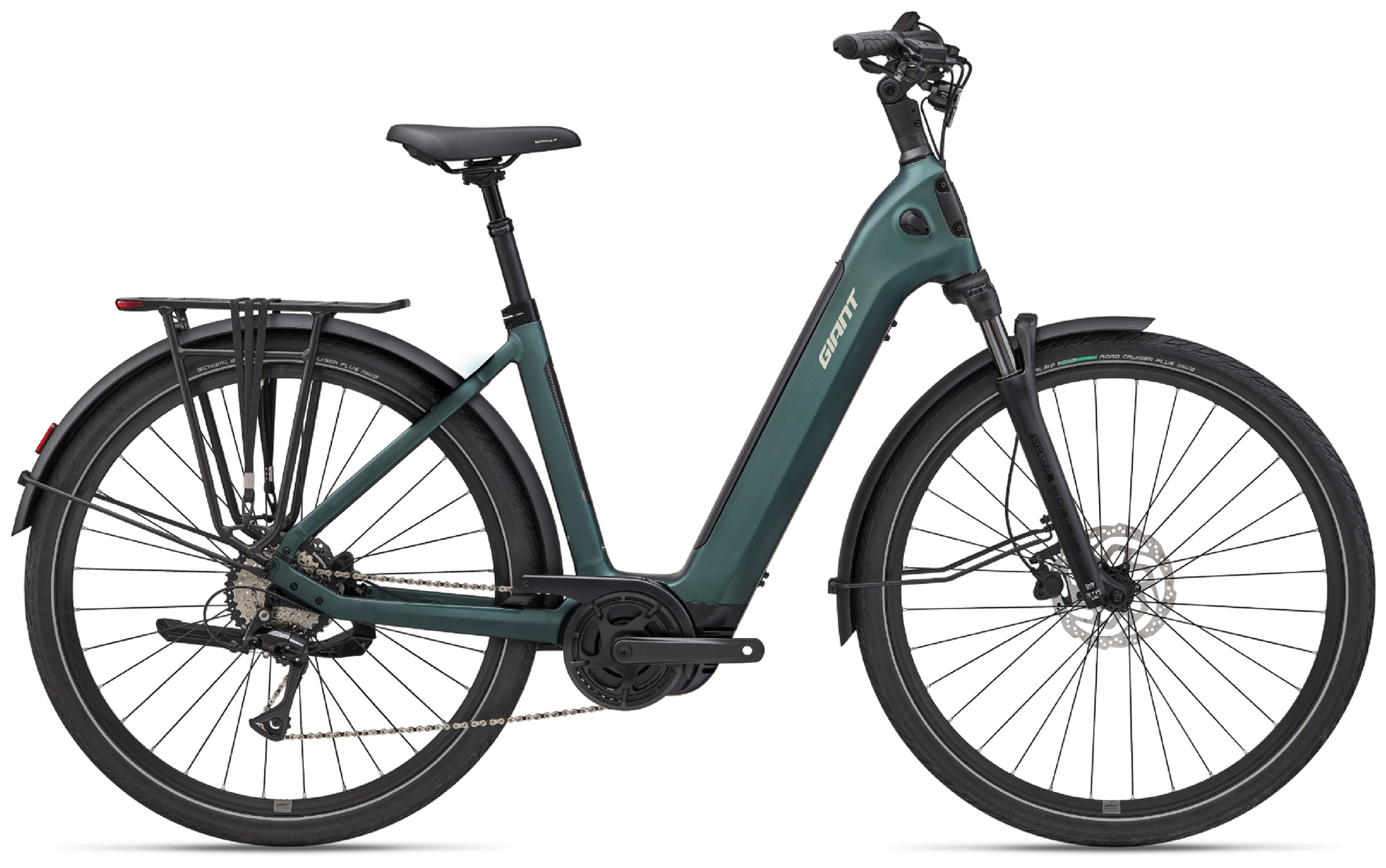

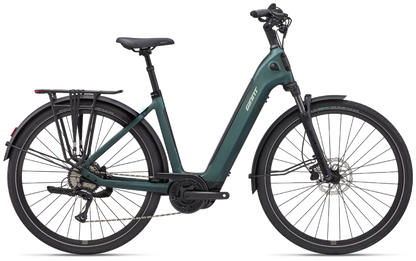

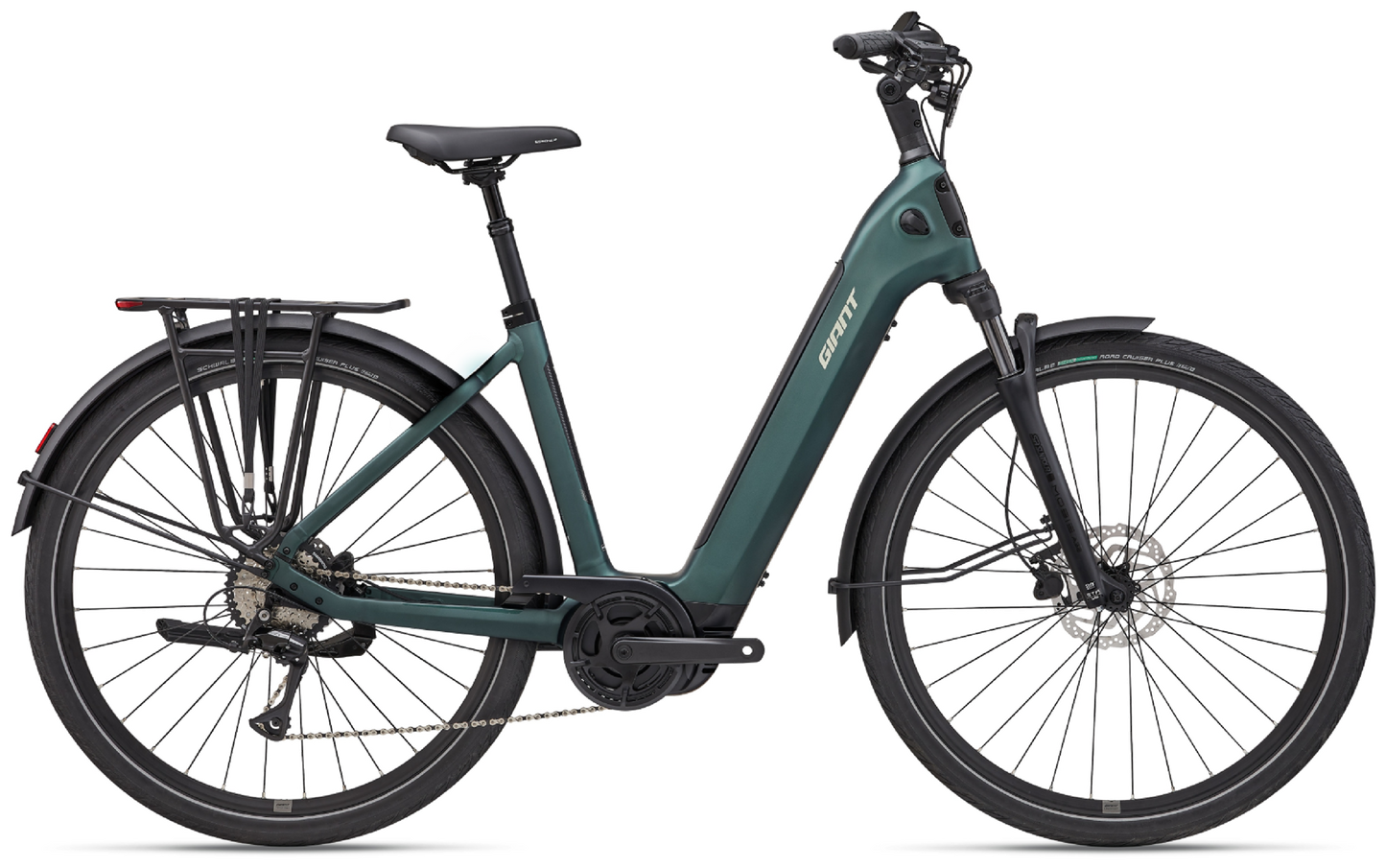

NewTour E+ 3 LST

COLOUR: KELP FOREST

SIZE: MEDIUM

Motor: Giant SyncDrive Core2 55Nm, PedalPlus 6-Sensor technology

Controller: Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels

Display: Giant RideControl Dash 2, full colour LCD display

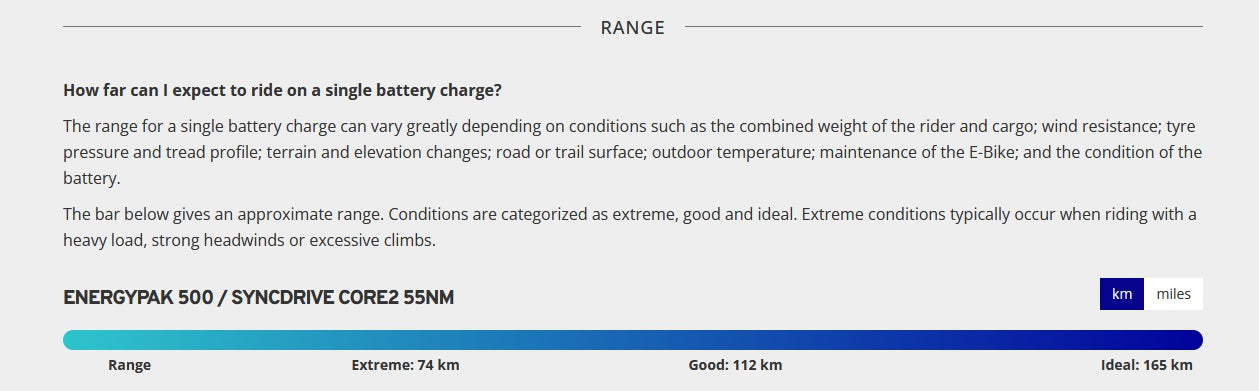

Battery: Giant EnergyPak 500Wh

Charger: Giant EnergyPak 4A smart charger

Maximum assisted speed: Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed

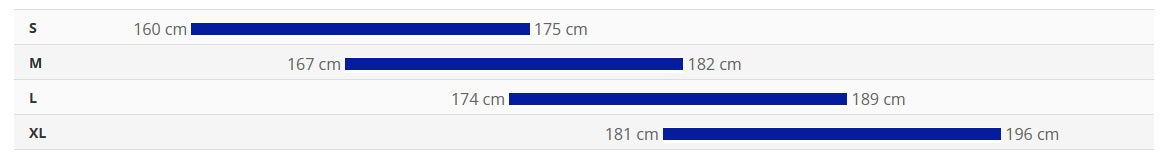

Sizes: M

Colours: Kelp Forest

Frame: ALUXX-grade aluminium, Integrated battery design, KSA18 Kickstand

Fork: SR Suntour Mobie A32 Coil 29" 5TA 63mm travel, 9x100mm Q/R

Handlebar: Aluminium, 30° back sweep, 31.8mm

Grips: Giant Comfort Ergo Microtech Plus

Stem: Aluminium angle adjustable stem, S:90mm, M:90mm, L:110mm, XL:110mm

Seatpost: Suspension, 30.9mm

Saddle: Selle Royal Essenza Plus

Pedals: Platform

Shifters: Shimano, SL-M315, 1x8

Front Derailleur: N/A

Rear Derailleur: Shimano Acera, 8-speed

Brakes: Tektro HD-M281, hydraulic disc, 180mm [F] 160mm [R]

Brake Levers: Tektro HD-M281, hydraulic disc

Cassette: Shimano HG400, 8-speed, 11-40T

Chain: KMC E8 Sport

Crankset: Forged Alloy, 38T

Rims: Giant GX03, Aluminium

Hubs: Shimano HB-QC300, disc, 32H [F] Shimano FH-QC400-HM, Disc 32H [R]

Spoke: Stainless steel [F] Stainless steel 13-14G butted [R]

Tyres: Schwalbe Road Cruiser Plus, 29"x50C, Wire Bead w/ reflective stripe

Extras: KSA18 direct mount kickstand

NSW Certification

ULL-104280-EA

Lighting: Giant Recon HL50, 50 lux [F] Carrier integrated tail light [R]

Lock: ABUS Xplus battery lock, ABUS Xplus battery lock (does not lnclude Abus ringlock)

Carrier: MIK rack. System bag & basket compatible

Fender/Chainguard
